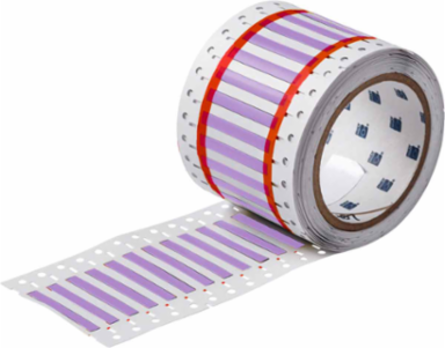

Brady 2HX-125-2-VT-4 PermaSleeve HX Heat Shrink Marking Sleeves 0.125 Inch Dia x 0.5 Inch W, 10000 Qty
- MPN: 2HX-125-2-VT-4
- UPC: 662820818700
- PPN: BRD-2HX-125-2-VT-4
CAD
$2509.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Key Specifications
| Material Number | B-7642 |
|---|---|
| Diameter as Supplied | 0.125 in |
| UOM | Roll of 10000 Each |
| Maximum Service Temperature °F | 248 °F |
| Maximum Wire Gauge | 16 AWG |
| Minimum Wire Diameter | 0.062 in |
| Printable Sides | Double-Side Printable |
| UPC | 662820818700 |
| Quantity per Row | 4 |
| Roll Width | 2 in |

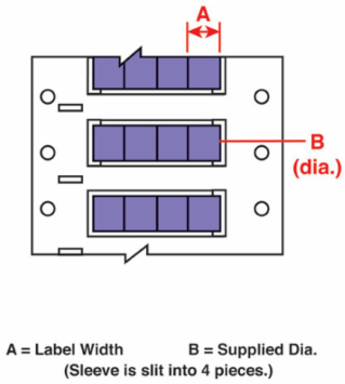

| Sleeve Size | 0.125 in Dia x 0.5 in W |
| Sleeve Slits | Yes |
| Trade Name | PermaSleeve® |
| Color | Violet |
| Label/Media Format | Roll |
| Material | Polyolefin |
| Print Technology | Thermal Transfer |
| Suggested Ribbon Series | R4300, R6000, R6400, R6600 |
| California Prop 65 | Cancer - || www.p65warnings.ca.gov |
|---|---|
| Dimensions | 0.235 in H |
| Finish | Matte |
| Maximum Wire Diameter | 0.11 in |
| Minimum Service Temperature °F | -40 °F |
| Minimum Wire Gauge | 20 AWG |
| Product Number | 117142 |
| Quantity per Roll | 10000 |
| Recovered Diameter | 0.062 in |
| Shrink Ratio | 2:1 |
| Sleeve Size(m) | 3.2 mm Dia x 12.7 mm W |
| Sleeve Width | 0.5 in |
| Applications | Cable & Wire Marking |
| For Use with Printer | BBP®72 Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Heat-Shrinkable |
| Resistance Properties | Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant |
