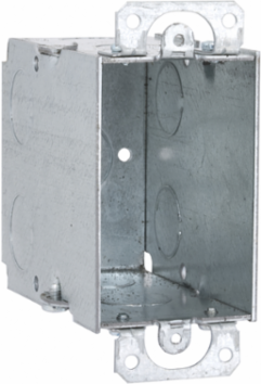

Raco 590 Gangable Switch Box 3 in. x 2 in. Deep, 3-1/2 in., 18.0 cu. in. Capacity
- MPN: 590
- UPC: 050169905906
- PPN: HBL-590
- UNSPSC: 39121303
CAD
$9.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3 in. x 2 in. Switch Box, Gangable, 3-1/2 in. Deep, Nine 1/2 in. KO's, Plaster Ears
Features
- 3 in. x 2 in., 3-1/2 in. deep
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
- With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
- Supplied with nine 1/2 in. knockouts
- Plaster ears allow a box to be used in "old work" applications
- 18.0 cu. in. capacity
- Acceptable for use in 2-hour fire rated walls
Documentation & Downloads
Specifications
Key Specifications
- Standard
- UL Listed
- Stock Indicator
- S - Shelf Stock
- Depth
- 3.5 in
- Product Type
- Steel Boxes and Covers
- Width
- 2 in
- Cubic Capacity
- 18.0 cu.in
- Type
- Switch Box;Box
- Description - Invoice
- SWXBXw/EARS 3-1/2DP 1/2KO
- Harmonization Code
- 7326909999
- MSDS Flag
- Yes
- Returnable Indicator
- Yes
- Fire Resistance
- Yes
- Plaster Ears
- Yes
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 36.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50
- Lowest Level UOM
- Each
- Pallet - Number of Sub Packs
- 54
- Pallet - SCC-14 Next Lower Level Sub Pack
- 50050169905901
- Pallet Height
- 44.875 in
- Pallet Weight
- 1667.250 lb.
- NAICS Code
- 3359326102
ARRA CompliantContact Manufacturer
Country of OriginMexico
Height4.219 in
Weight0.721 lb.
Bracket TypeNo Bracket
Knockouts1/2 in
Class CodeD01
Freight Class Code06105700
Image Actual Or RepresentativeA
Order Multiple50 EA
Sub Class CodeD015D0150
GangableYes
Wiring SystemConduit
BOX SIZE7.875x18.125x11.625 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack50169905906
Each - Pack DescriptionEach
Pallet - GTIN - Package70050169905905
Pallet - Pack DescriptionPallet
Pallet - Total Units2700
Pallet Length42.000 in
Pallet Width48.000 in
Certifications
- Buy American Compliant
- No
- EU RoHS Indicator
- Contact Manufacturer
Certified ListedUL Listed
