Thomas & Betts J3-666-25-SV-TMA Multi-Point Junction - 3 Points
- MPN: J3-666-25-SV-TMA
- UPC: 078378607268
- PPN: T-B-J3-666-25-SV-TMA
CAD
$3624.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

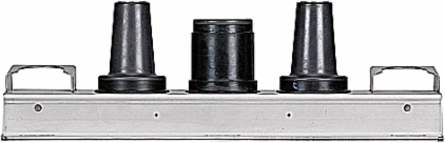

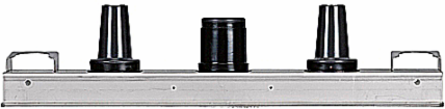

3 Point Junction, with three 600 Amp Bushing Interfaces, 25kV, 6-1/2 inch centers. Tilt Mounting Adapter.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | 6-1/2 inch Center Spacing. |
| Standard | ANSI/IEEE Standard 386 |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets. |
| Mounting | Tilt Mounting Adapter. |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Multi-Point Junction - 3 Points |
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
| Size | Overall Length 26 inches, Width 6-3/4 inches. |
| Temperature Rating | -40 to +65 Degrees C. |
| Connection | Push-in |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
