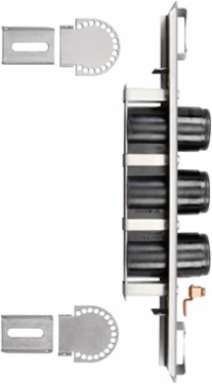

Thomas & Betts K1601WJ3 15/25KV LB 3WAY WELL JNCTN SST BRKT
- MPN: K1601WJ3
- UPC: 783786621958
- PPN: T-B-K1601WJ3
- UNSPSC: 26121630
CAD
$1612.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25 kV, 200 Amp Loadbreak, 3-Way Well Junction with Stainless Steel Bracket
Specifications
Additional Information
- Application
- Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems.
- Effective Date
- 19980108
- Product Name
- PRIMARY CABLE ACC. 200 SEP CON
- Size
- Bracket 23.00 inches (584.2 mm) long, 5.00 inches (127.0 mm) wide,
- Standards
- ANSI/IEEE 386
Brand / LabelElastimold
MaterialEPDM Rubber with Stainless Steel Bracket
Product Type3-Way Well Junction
Special Functions15/25kV, 200 Amp Loadbreak 3-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through a variety of inserts. Mounting hardware for flat or curved mounting positions.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
