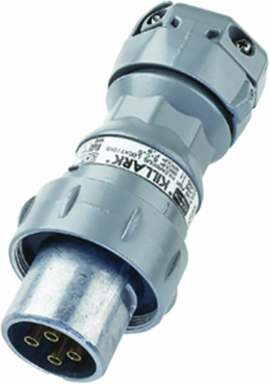

Killark VP3385 30A 2 Pole 3 Wire Plug Assembly
Killark VP3385 30A 2 Pole 3 Wire Plug Assembly
- MPN: VP3385
- UPC: 783936834023
- PPN: HBL-VP3385
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$878.55/ EA
Description
30A 2 Pole 3 Wire Plug Assembly
Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
- Insulators have high mechanical and dielectric strength.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Includes suitability for Type P marine cable.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Specifications
- Country of Origin
- United States
- Height
- 3 in
- Voltage Rating
- 600 VAC;250 VDC
- Amperage Rating
- 30 A
- Finish Type
- Baked Powder Epoxy/Polyester Finish
- Number Of Wires
- 2
- Type
- Pin & Sleeve
- Description - Invoice
- 30A 2W3P PLUG ASSY. S37
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Grommet Range
- 0.55-1.20
- Series
- VersaMate Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A104
Dimensions6.68 in x 3 in x 3 in
Length6.68 in
Width3 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Frequency Rating50-400 Hz
StyleStyle II
Class CodeD35
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD35D260
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936834023
Certifications
- EU RoHS Indicator
- Contact Manufacturer
