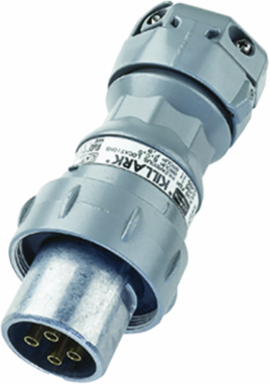

Killark VP3485-S39 30A 3 Pole 4 Wire Pin & Sleeve Plug Assembly, 6.68 Inch Length, 3 Inch Width, 600 VAC
- MPN: VP3485-S39
- UPC: 783936398501
- PPN: HBL-VP3485-S39
CAD
$970.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30A 3 Pole 4 Wire Plug Assembly - Reverse Service
Features
- Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
- Insulators have high mechanical and dielectric strength.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Includes suitability for Type P marine cable.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3 in
- Voltage Rating
- 600 VAC;250 VDC
- Amperage Rating
- 30 A
- Finish Type
- Baked Powder Epoxy/Polyester Finish
- Number Of Wires
- 3
- Type
- Pin & Sleeve
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D35D260
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936398501
- NAICS Code
- 335931A104
Dimensions6.68 in x 3 in x 3 in
Length6.68 in
Width3 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Frequency Rating50-400 Hz
StyleStyle II
ARRA CompliantContact Manufacturer
Description - Invoice30A 3W4P PLUG ASSY.REV SRV
Harmonization Code8536694020
MSDS FlagNo
Grommet Range0.55-1.20
SeriesVersaMate Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Total Units1 EA
