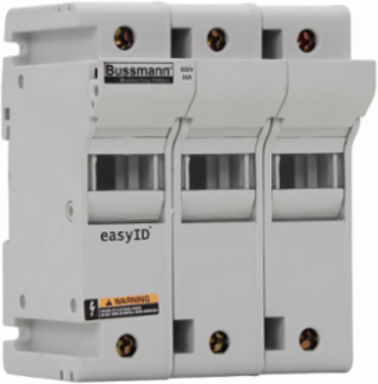

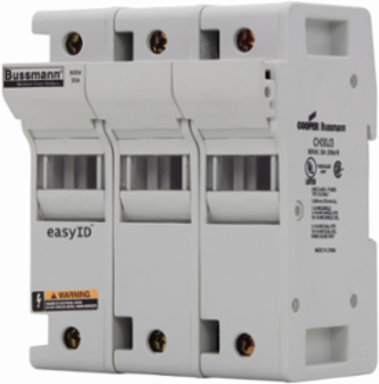

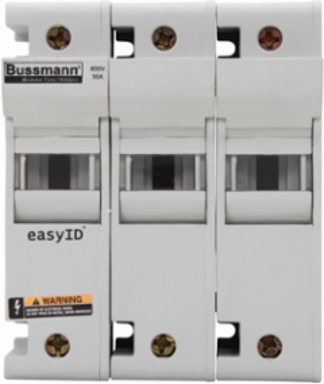

Edison CH30J3 Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Three-pole
- MPN: CH30J3
- UPC: 051712630863
- PPN: BUS-CH30J3
CAD
$153.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Bussmann series CH modular fuse holder, 30 A, Three-pole, 85, Celsius, Class J, Tin-plated copper clip, Thermoplastic housing, Panel, 35 mm DIN rail, 600 Vac/dc
Features
- The Cooper Bussmann CH30J3 features an integrated 3-pole ganged assembly that ensures all three phases open simultaneously during service work or fuse extraction. This structural interlock completely eliminates the risk of accidental single-phasing, safeguarding your three-phase motors and downstream industrial equipment from costly phase-unbalance damage.
- Rated for up to 600 VDC
- This heavy-duty modular unit is purpose-built to accept any standard 0 to 30 Amp Class J fuses, seamlessly accommodating industry-standard lines.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 600 Vdc
- Number of Poles
- Three-pole
- Class
- Class J
- Compliances
- RoHS Compliant
Amperage30 A
Mounting MethodPanel
MaterialThermoplastic housing
