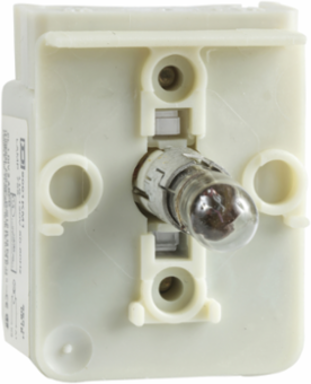

Schneider Electric 9001KM7 Harmony 9001K Light Block, 30 mm, Incandescent Bulb, IP20, 220-240V

MPN: 9001KM7
UPC: 785901725435
PPN: SCH-9001KM7

$147.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This light block with transformer provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to illumination via integral LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, IP20, Type 1, 2, 3, 3R, 4, 12 and 13)

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico, United States

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	Harmony 9001K, Harmony 9001SK
Local Data Status	Publishable
Return Indicator	N
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001K
Electrical Shock Protection Class	class II conforming to IEC 61140
Light Source	incandescent bulb
Product Or Component Type	light block
Returnability	No
Supply Frequency	50...60 Hz
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2503027EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809026

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	NEMA, UL 508
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bulb Base	BA 9s
Device Short Name	9001K
Light Block Supply	via integral transformerdirect via integral transformer 6 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage	220...240 V230 V AC
Package Weight(Lbs)	149.686 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP10 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
