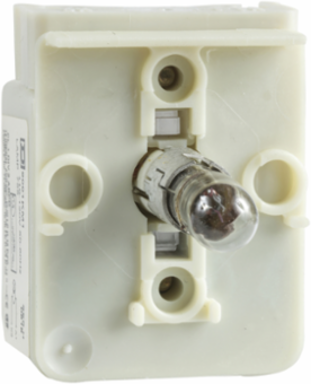

Square D 9001KM5 Harmony 9001K Light Block, 30 mm, Incandescent Bulb, 380-480V
- MPN: 9001KM5
- UPC: 785901725336
- PPN: SCH-9001KM5
CAD
$147.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This light block with transformer provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due illumination via integral LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K || Harmony 9001SK
- Product Or Component Type
- light block
- Bulb Base
- BA 9s
Light Block Supplydirect via integral transformer 6 V
Device Short Name9001K
Complementary
- [Us] Rated Supply Voltage
- 380...480 V
- Light Block Supply
- via integral transformer
- Size
- 30 mm
- [Us] Rated Supply Voltage
- 380...480 V AC/DC
Light Sourceincandescent bulb
Net Weight0.144 kg
Supply Frequency50...60 Hz
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
StandardsUL 508 || JIS C 852 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 4520
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
