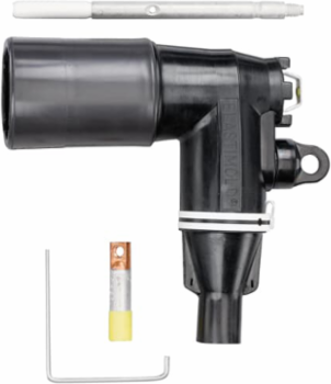

Thomas & Betts 376LR-H5270 35KV 200A LB ELBOW W/TP H5270

MPN: 376LR-H5270
UPC: 783786455218
PPN: T-B-376LR-H5270
UNSPSC: 39121421

$839.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

Specifications

Classifications

WEEE Category	Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)	4586 >> Electrical connector assembly

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	35 kv, 200 Amp
Color	Black
Current Rating	200 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Cable Insulation Diameter 0.850 inch to 1.050 inch
Standards	ANSI/IEEE Standard 386
Voltage Rating	35 kV

Brand / Label	Elastimold
Connection Type	Push-In
Effective Date	20050308
Includes	1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instruction Sheet
Material	Housing - EPDM Rubber
Product Type	Loadbreak Elbow Connector with Test Point
Special Functions	35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Non-Corrosive Capacitive Voltage Test Point.
Temperature Range	-40 to +65 °C
