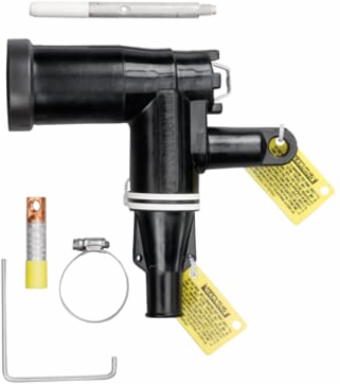

Thomas & Betts 167DLR-H5270 15KV 200A LB DIR TEST ELBOW H5270
- MPN: 167DLR-H5270
- UPC: 783786497010
- PPN: T-B-167DLR-H5270
- UNSPSC: 39121421
CAD
$371.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
200 Amp, 15kV, Loadbreak Direct Test Elbow Connector, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 or Solid 250 or mmSquared 26.67.
Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Elastimold Direct Test System port for easy energized status determination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Standard
- ANSI/IEEE Standard 386 / ANSI/IEEE Standard 386
- Conductor Range
- 4/0 STR/COMPR AWG , 250 kcmil
- Voltage Rating
- 15 kV
- Amperage Rating
- 200 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15kV, 200 Amp Class loadbreak elbow connector which incorporates Elastimold Direct Test System (EDTS) for isolation, testing, and grounding
SizeCable Insulation Diameter 0.850 inch to 1.050 inch
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
