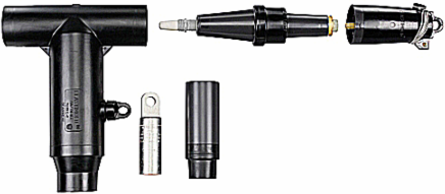

Thomas & Betts 756LRTP-P0410-DRGS Stick Op Reducing Tap Plug Connector with Test Point
- MPN: 756LRTP-P0410-DRGS
- UPC: 783786976133
- PPN: T-B-756LRTP-P0410-DRGS
CAD
$1967.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35kV, Deadbreak, Stick-Op Connector Kit, with Capacitive test point, Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)4.37x13.25x10.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Enclosure
- Yes, EPDM Rubber
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
IGCC4586 Electrical connector assembly
TypeStick Op Reducing Tap Plug Connector with Test Point
ApplicationConnect 600 Amp interface to 200 Amp Loadbreak Tap
Conductor RangeConductor Size AWG or kcmil, Compressed Stranded 1000.
ColorBlack
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
