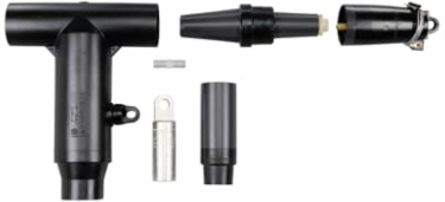

Thomas & Betts 756ETP-M0320-DRGA-S 35KV 600A WINDOW OP KIT
- MPN: 756ETP-M0320-DRGA-S
- UPC: 075114321754
- PPN: T-B-756ETP-M0320-DRGA-S
- UNSPSC: 39121421
CAD
$1735.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV, 600 Amp, Deadbreak Window Op Connector Kit with Test Point, includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Compression Lug, without Cap's Probe. Cable Insulation Diameter 1.370 to 1.630 inches, Universal Aluminum Compression Lug, Conductor Size Stranded/Compressed 450, Solid/Compact 500/550
Features
- Includes Insulated Cap and Sealing Kit
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Number Of Conductors | 450 STR/COMPR kcmil , 500 to 550 SOL/COMPT kcmil |
| Voltage Rating | 35 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 35kV |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
