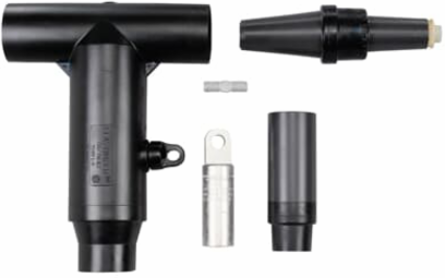

Thomas & Betts 756ETP-K0260 35KV,600A WINDOWOP NO SEALING KIT
- MPN: 756ETP-K0260
- UPC: 075114303637
- PPN: T-B-756ETP-K0260
- UNSPSC: 39121421
CAD
$1539.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV, 600 Amp, Window Op With Test Point, Cable Insulation 1.090-1.310 inches, Aluminum Compression Lug, Conductor Size 3/0 Stranded/Compressed or 4/0 Compact/Solid. No Seal
Specifications
Additional Information
| Application | 600 Amps, 35kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 1.090-1.310 inches, |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20160505 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 35 kV |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
