Thomas & Betts 755BLR 35KV DEADBREAK ELB HOUSING
Thomas & Betts 755BLR 35KV DEADBREAK ELB HOUSING
- MPN: 755BLR
- UPC: 783786667123
- PPN: T-B-755BLR
- UNSPSC: 26121630
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$847.95/ EA
Description

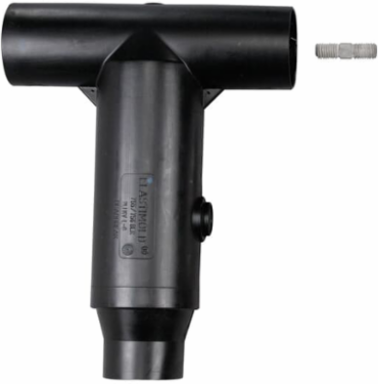

35kV 600 Series Deadbreak Elbow Housing Only (with Stud)
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Additional Information
- Application
- The Elastimold 755BLR deadbreak elbow housings are a component of the Elastimold 600 Amp elbow product line.
- Effective Date
- 19980115
- Product Name
- electrical connector,>1000v"
- Size
- 3.83 inch (97.3 mm) Diameter of Cable Entrance, 10.16 inch (258.1 mm) Width of T Body, 13.93 (353.7 mm) Centerline to Bushing Interface.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product TypeElbow Housing
Special FunctionsFully rated 35kV, 600 Amp Deadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
CAD$847.95/ EA
