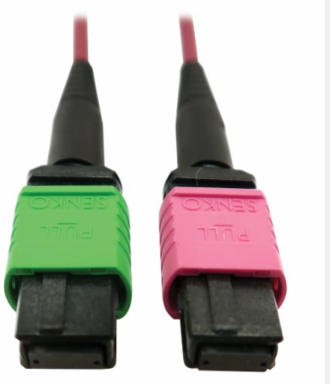

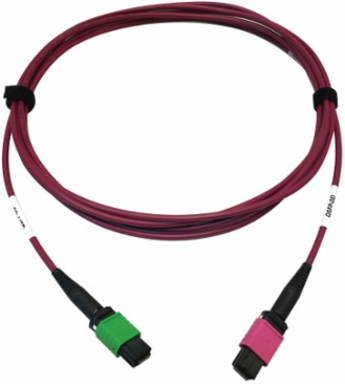

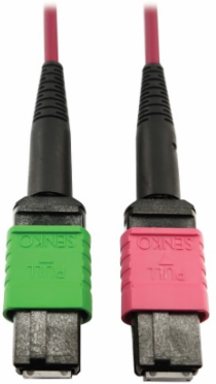

Tripp Lite N846D03M16BMG Fiber Optic Cable, 400G Multimode OM4, 16F MTP/MPO-APC to MTP/MPO-UPC (F/F), Plenum, Magenta, 3 m
- MPN: N846D03M16BMG
- UPC: 037332258267
- PPN: TRP-N846D-03M-16BMG
CAD
$448.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM4 Plenum Fiber Optic Cable, 16F MTP/MPO-APC to MTP/MPO-UPC (F/F), Magenta, 3 m
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 3 m (9.8 ft)
- Side A - Connector 1
- 16F MPO (Female)
- Endface Polish
- APC, UPC
- Clad Diameter
- 125 microns
- Primary Coating Diameter
- 245 microns
Number of Fibers16
Side B - Connector 116F MPO (Female)
PolarityType B (Cross)
Core Diameter50 microns
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Material
- Cable Jacket Color
- Magenta
- Cable Jacket Material
- PVC
Connector ColorGreen, Black, Magenta
Cable Jacket RatingOFNP
Performance
- Network Compatibility
- 400 Gbps
- Transmission Distance
- 100 m @ 850 nm Wavelength
- Operating Temperature Range
- -4 to 140°F (-20 to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
TechnologyMultimode
Attenuation @ 850NM3.0 dB/km
Storage Temperature Range-4 to 140°F (-20 to 60°C)
Storage Humidity Range35% to 65% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
