Tripp Lite N84503M8SMG Fiber Optic Cable, MTP/MPO-APC to 8x Duplex SN-PC, 16F Multimode OM4, LSZH, Magenta, 3 m
- MPN: N84503M8SMG
- UPC: 037332274694
- PPN: TRP-N845-03M-8S-MG
CAD
$928.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

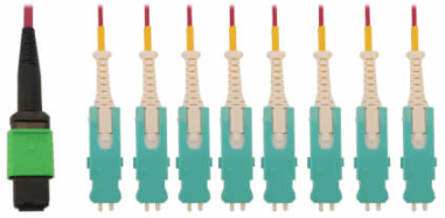

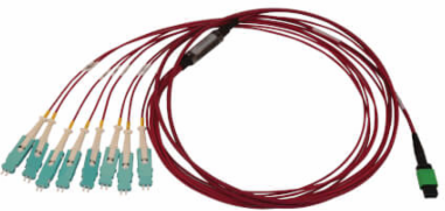

40/100/400G Multimode 50/125 OM4 Breakout Fiber Optic Cable (16F MTP/MPO-APC to 8x Duplex SN-PC F/M), LSZH, Magenta, 3 m (9.8 ft.)
Documentation & Downloads
Specifications
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850NM
- 3.5dB
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.5dB
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Material
- Technology
- Multimode
- Connector Color
- Aqua; Black; Green; White
- Cable Jacket Rating
- OFNR
Cable Jacket ColorMagenta
Cable Jacket MaterialLSZH
Dimensions
- Cable Length
- 3 m (9.8 ft)
- Side A - Connector 1

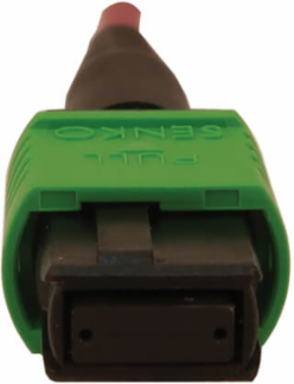

- 16F MPO (Female)
- Optical Port
- MPO/MTP; SN
- Breakout
- Yes
- Clad Diameter
- 125.0
- Primary Coating Diameter
- 245.0
Number of Fibers16

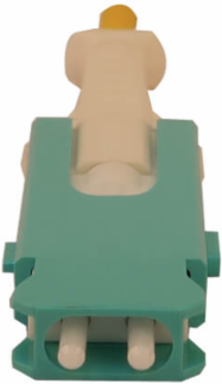

Side B - Connector 1(8) SN Duplex (Male)
Endface PolishAPC; PC
Cable Outer Diameter3.0 mm
Core Diameter50.0
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Reference
- Product Warranty Period
- Lifetime limited warranty
