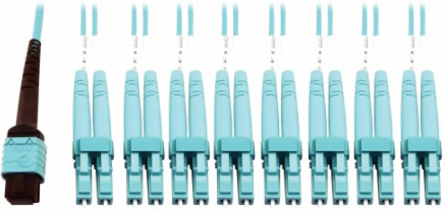

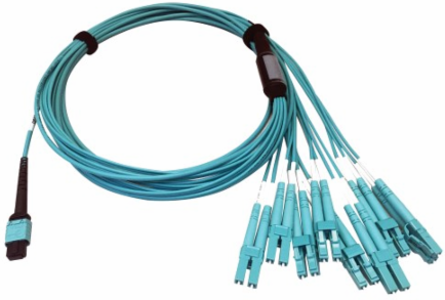

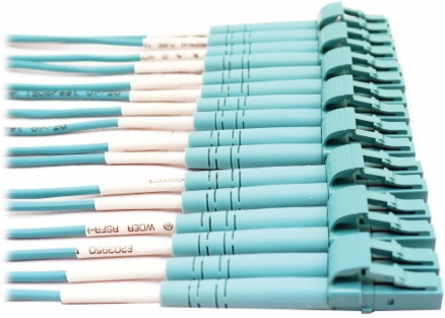

Tripp Lite N846D03M24CAQ Fiber Optic Breakout, 400G Multimode OM4, 24F MTP/MPO-PC to (x4) LC Duplex (F/M), Plenum, Aqua, 3 m
- MPN: N846D03M24CAQ
- UPC: 037332258458
- PPN: TRP-N846D-03M-24CAQ
CAD
$627.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM4 Plenum Fiber Optic Breakout Cable, 24F MTP/MPO-PC to (x4) LC Duplex (F/M), Aqua, 3 m
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 3 m (9.8 ft)
- Side A - Connector 1
- 24F MPO (Female)
- Endface Polish
- PC
- Breakout
- Yes
- Core Diameter
- 50 microns
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
Number of Fibers16
Side B - Connector 1(8) LC Duplex (Male)
PolarityType B (Cross)
Clad Diameter125 microns
Primary Coating Diameter245 microns
Material
- Cable Jacket Color
- Aqua
- Cable Jacket Material
- PVC
Connector ColorAqua, Black
Cable Jacket RatingOFNP
Performance
- Network Compatibility
- 400 Gbps
- Transmission Distance
- 100 m @ 850 nm Wavelength
- Operating Temperature Range
- -4 to 140°F (-20 to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
TechnologyMultimode
Attenuation @ 850NM3.0 dB/km
Storage Temperature Range-4 to 140°F (-20 to 60°C)
Storage Humidity Range35% to 65% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
