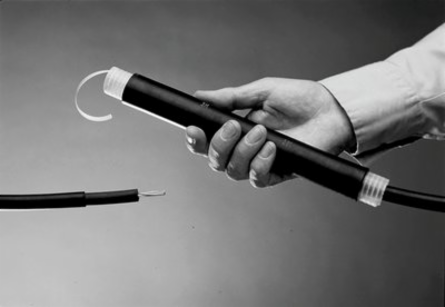

3M 5743 Cold Shrink Inline Splice, Non-Shielded, 5/8 kV, 0.90-2.10 Inch O.D., 350-1000 kcmil (Cu)

Cold Shrink Inline Splice, Non-Shielded, 5/8 kV, 0.90-2.10 Inch O.D., 350-1000 kcmil (Cu)
  • MPN: 5743
  • UPC: 054007494935
  • PPN: MMM-5743

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1000.00/ EA

Description

Cold Shrink Inline Splice, Non-Shielded, 5/8 kV, 0.90-2.10 Inch O.D., 350-1000 kcmil (Cu)

Specifications

Specifications

3M ID
80610592299
Conductor Sizes
1000 kcmil (Cu Only), 350 kcmil, 500 kcmil, 750 kcmil
Insulation/Jacket O.D. Range (metric)
22.9 - 53.3 mm
Maximum Connector Length (Cu or Al) (Metric)
158.8 mm
Number of Conductors
1
Product Technology
Cold Shrink
RoHS 2011/65/EU Compliant
Yes
Shielding Type
Non-shielded
Trademark
3M
Typical Splice Length (metric)
381 mm
Case Quantity1
Insulation/Jacket O.D. Range0.90 - 2.10 in
Maximum Connector Length6.25 inch
Maximum Connector Length (metric)158.8 mm
Product Series5740 Series
Product TypeSplice
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeInline
Typical Splice Length15 in
Voltage5/8 kV
