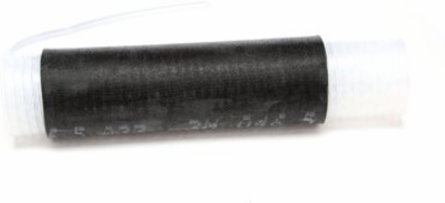

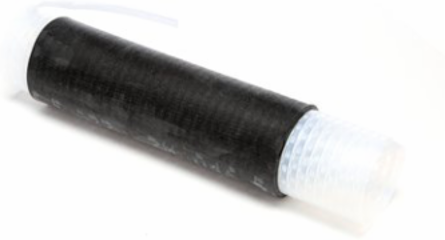

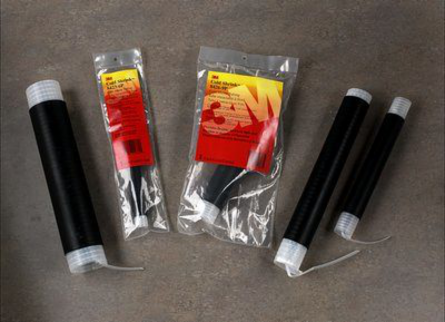

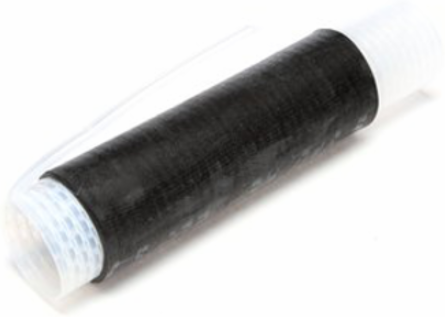

3M 8427-6 Cold Shrink Insulator, 6 Inch Length, EPDM Rubber, 1 kV Rated, 10/Case
- MPN: 8427-6
- UPC: 054007099154
- PPN: MMM-8427-6
CAD
$52.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Insulator, 6 Inch Length, EPDM Rubber, 1 kV Rated, 10/Case
Specifications
Key Specifications
| 3M ID | 80610456164 |
|---|---|
| Brand | 3M |
| Case Quantity | 10 |
| Conductor Material | Aluminum, Copper |
| Inner Diameter After Heat-Shrink | 16.8 mm |
| Length | 6 Inch |
| Material | EPDM-rubber |
| Maximum Connector Length (metric) | 50.8 mm |
| Product Type | Splice |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Splice Type | Cold Shrink |
| Voltage | 1 kV |
| Applications | Insulation, mechanical protection, repair |
|---|---|
| Cable Type | Non-Shieled, Solid Dielectric Power Cable |
| Color | Black |
| Conductor Sizes | N/A |
| Inner Diameter Before Heat-Shrink | 35.1 mm |
| Length (Metric) | 152 mm |
| Maximum Connector Length | 2.0 in |
| Number of Conductors | 1 |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Trademark | 3M |
| Voltage Application | Low Voltage |
