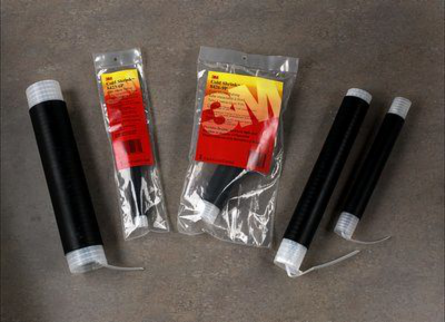

3M 8429-12 Cold Shrink Insulator, 900-1000 kcmil, 1 kV, EPDM Rubber, 10 per Case
- MPN: 8429-12
- UPC: 054007423898
- PPN: MMM-8429-12
CAD
$179.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Insulator, 900-1000 kcmil, 1 kV, EPDM Rubber, 10 per Case
Specifications
Key Specifications
| 3M ID | 80610921910 |
|---|---|
| Brand | 3M |
| Color | Black |
| Conductor Sizes | 1000 kcmil, 900 kcmil |
| Inner Diameter Before Heat-Shrink | 72.4 mm |
| Material | EPDM-rubber |
| Maximum Connector Length (metric) | 203.2 mm |
| Minimum Wire Gauge | 32.2mm² |
| Operating Temperature (Celsius) | -40 up to +90°C |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Splice Type | Cold Shrink |
| Voltage | 1 kV |
| Applications | Insulation, mechanical protection, repair |
|---|---|
| Case Quantity | 10 |
| Conductor Material | Aluminum, Copper |
| Inner Diameter After Heat-Shrink | 21.3 mm |
| Length (Metric) | 305 mm |
| Maximum Connector Length | 8.0 in |
| Maximum Wire Gauge | 67.8mm² |
| Number of Conductors | 1 |
| Product Type | Cold shrinking |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Shrink Ratio | 2:1 |
| Trademark | 3M |
| Voltage Application | Low Voltage |
