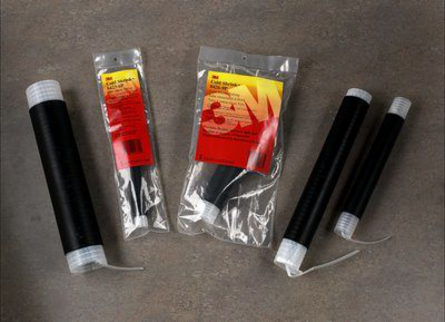

3M 8430-18 Cold Shrink Insulator, 1250-2000 kcmil, 1 kV, 10 per case
- MPN: 8430-18
- UPC: 054007423881
- PPN: MMM-8430-18
CAD
$304.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Insulator, 1250-2000 kcmil, 1 kV, 10 per case
Specifications
Key Specifications
| 3M ID | 80610921902 |
|---|---|
| Brand | 3M |
| Color | Black |
| Conductor Sizes | 1250 kcmil, 1500 kcmil, 1750 kcmil, 2000 kcmil |
| Inner Diameter Before Heat-Shrink | 93.7 mm |
| Material | EPDM-rubber |
| Maximum Connector Length (metric) | 355.6 mm |
| Minimum Wire Gauge | 42.6mm² |
| Operating Temperature (Celsius) | -40 up to +90°C |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Splice Type | Cold Shrink |
| Voltage | 1 kV |
| Applications | Insulation, mechanical protection, repair |
|---|---|
| Case Quantity | 10 |
| Conductor Material | Aluminum, Copper |
| Inner Diameter After Heat-Shrink | 42.6 mm |
| Length (Metric) | 457 mm |
| Maximum Connector Length | 14.0 in |
| Maximum Wire Gauge | 93.7mm² |
| Number of Conductors | 1 |
| Product Type | Cold shrinking |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Shrink Ratio | 2:1 |
| Trademark | 3M |
| Voltage Application | Low Voltage |
