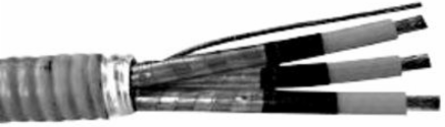

3M 5777A-MT Cold Shrink QS-III Inline Cable Splice Kit, 15 kV, 1.04-1.70 Inch O.D.
- MPN: 5777A-MT
- UPC: 054007442899
- PPN: MMM-5777A-MT
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QS-III Inline Cable Splice Kit, 15 kV, 1.04-1.70 Inch O.D.
Specifications
Key Specifications
| 3M ID | 80611207384 |
|---|---|
| Case Quantity | 1 |
| Conductor Sizes for 5_8 kV | 1000 kcmil, 750 kcmil |
| Insulation O.D. Range | 1.04 - 1.70 Inch |
| Number of Conductors | 3 |
| Product Technology | Cold Shrink, Armorcast |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield |
| Suggested Accessory | 3M™ Trifurcating Accessory for 3-C to 3 Single Conductors MT-E |
| Typical Splice Length | 58.0 in |
| Voltage | 15 kV, 5/8 kV |
| Brand | 3M™ |
|---|---|
| Conductor Sizes for 15 kV | 350 kcmil, 500 kcmil, 750 kcmil |
| Connector Included | None |
| Insulation Outside Diameter Range | 1.04 - 1.70 Inch |
| Product Series | 5775A-MT, 5776A-MT & 5777A-MT Series |
| Product Type | Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline |
| Trademark | 3M |
| Typical Splice Length (metric) | 147 cm |
| Voltage Application | Low Voltage |
