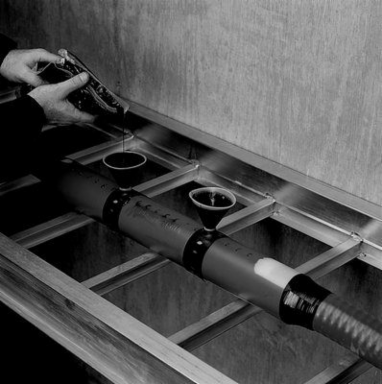

3M 5762 Cold Shrink Cable Splice, 15 kV, 4/0-750 kcmil Cu, 44 Inch, Inline Splice, 0.93-1.94 Inch O.D.
- MPN: 5762
- UPC: 054007122623
- PPN: MMM-5762
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Cable Splice, 15 kV, 4/0-750 kcmil Cu, 44 Inch, Inline Splice, 0.93-1.94 Inch O.D.
Specifications
Key Specifications
| 3M ID | 80610154371 |
|---|---|
| Conductor Sizes for 15 kV | 250 kcmil, 350 kcmil, 4/0 AWG, 500 kcmil, 750 kcmil (Cu Only) |
| Insulation O.D. Range | 0.93 - 1.94 Inch |
| Maximum Connector Length | 5.0 inch |
| Number of Conductors | 3 |
| Product Technology | Cold Shrink, Resin |
| Shielding Type | Tape Shield |
| Trademark | 3M |
| Typical Splice Length (metric) | 1118 mm |
| China RoHS - Below MCV | No |
|---|---|
| Conductor Sizes for 5_8 kV | 1000 kcmil, 500 kcmil, 750 kcmil |
| Insulation Outside Diameter Range | 0.93 - 1.94 Inch |
| Maximum Connector Length (metric) | 127.0 mm |
| Product Series | 5760 Series |
| Product Type | Splice |
| Splice Type | Inline |
| Typical Splice Length | 44.0 in |
| Voltage | 15 kV, 5/8 kV |
