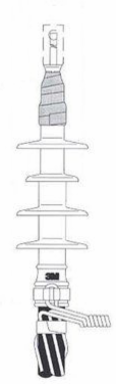

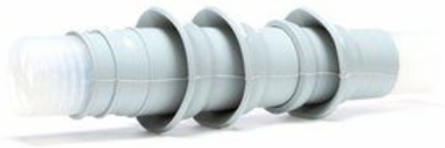

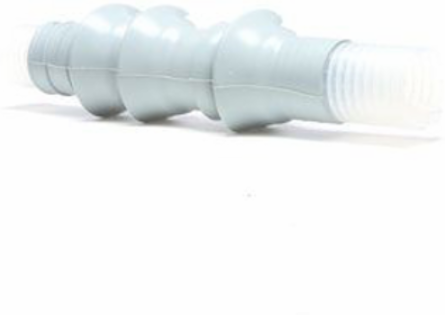

3M 5601 Cold Shrink QT-II Outdoor Termination Kit, 5-15 kV, 0.64-1.12 Inch O.D., 4 Skirts
- MPN: 5601
- UPC: 054007024279
- PPN: MMM-5601
CAD
$311.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-II Outdoor Termination Kit, 5-15 kV, 0.64-1.12 Inch O.D., 4 Skirts
Specifications
Key Specifications
| 3M ID | 80610154611 |
|---|---|
| BIL | 110 kV |
| Cable Insulation Outside Diameter Range | 0.64-1.12 in |
| Case Quantity | 1 |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Product Series | 5600 |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Agency Approvals | IEEE |
|---|---|
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 16.3-28.4 mm |
| Conductor Size by Voltage | (5 kV, 100%) 3/0 AWG-500 kcmil, (5 kV, 133%) 2/0 AWG-500 kcmil, (8 kV, 100%) 2/0 AWG-500 kcmil, (8 kV, 133%) 1/0 AWG-350 kcmil, (15 kV) 2-4/0 AWG |
| Family | QT-II |
| Insulation Rejacketing | No |
| Maximum Installed Length | 8.50 in |
| Number of Skirts | 4 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Concentric Neutral (CN) |
| Voltage | 15 kV, 5 kV, 8 kV |
