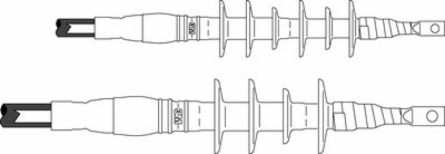

3M 7652-S-HSG-4 3M Cold Shrink QT-III Silicone Rubber Termination 7652-S-HSG-4 (High-Amp), Longitudinally Corrugated and Wire Over Tape, 5-25/28 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit

3M Cold Shrink QT-III Silicone Rubber Termination 7652-S-HSG-4 (High-Amp), Longitudinally Corrugated and Wire Over Tape, 5-25/28 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit
3M Cold Shrink QT-III Silicone Rubber Termination 7652-S-HSG-4 (High-Amp), Longitudinally Corrugated and Wire Over Tape, 5-25/28 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit
  • MPN: 7652-S-HSG-4
  • UPC: 054007421719
  • PPN: MMM-7652-S-HSG-4

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$590.41/ EA

Description

3M Cold Shrink QT-III Silicone Rubber Termination 7652-S-HSG-4 (High-Amp), Longitudinally Corrugated and Wire Over Tape, 5-25/28 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit

Specifications

Specifications

3M ID
80610839716
BIL
150 kV
Cable Insulation Outside Diameter Range
0.64-1.08 in
Case Quantity
1
Conductor Sizes
1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil
Indoor/Outdoor
Outdoor Skirted
Insulation Rejacketing
No
Maximum Installed Length
12.25 in
Number of Skirts
4
RoHS 2011/65/EU Compliant
Undetermined
Shielding Type
Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield
Voltage
15 kV, 25/28 kV, 5 kV, 8 kV
Agency ApprovalsIEEE
Breakout BootNo
Cable Insulation Outside Diameter Range (metric)16.3-27.4 mm
Conductor Size by Voltage(5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG, (25/28 kV) 2-1/0 AWG
FamilyQT-III
Insulation Level100%, 133%
Lug/Stem Connector Included in KitNo
Number of Conductors1
Product Series7650-S-HSG
RoHS EU CommentsContact 3M for information
Trademark3M
