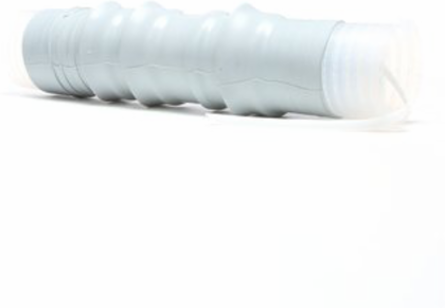

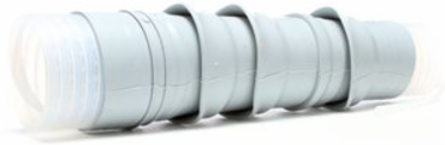

3M 5643 Cold Shrink QT-II Termination Kit, 15 kV, 1.08-1.80 Inch Cable O.D., Outdoor Use

Cold Shrink QT-II Termination Kit, 15 kV, 1.08-1.80 Inch Cable O.D., Outdoor Use
Cold Shrink QT-II Termination Kit, 15 kV, 1.08-1.80 Inch Cable O.D., Outdoor Use
Cold Shrink QT-II Termination Kit, 15 kV, 1.08-1.80 Inch Cable O.D., Outdoor Use
  • MPN: 5643
  • UPC: 054007119722
  • PPN: MMM-5643

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$560.76/ EA

Description

Cold Shrink QT-II Termination Kit, 15 kV, 1.08-1.80 Inch Cable O.D., Outdoor Use

Specifications

Specifications

3M ID
80610155014
BIL
110 kV
Cable Insulation Outside Diameter Range
1.08-1.80 in
Cable Type
Jacketed Concentric Neutral (JCN)
Color
Gray
Conductor Sizes
400 kcmil, 450 kcmil, 500 kcmil, 600 kcmil, 700 kcmil
Family
QT-II
Insulation Level
100%, 133%
Jacket Outside Diameter Range
1.37-2.02 in
Maximum Installed Length
11.00 in
Number of Skirts
4
RoHS 2011/65/EU Compliant
Undetermined
Shielding Type
Jacketed Concentric Neutral (JCN)
Voltage
15 kV
Agency ApprovalsIEEE
Breakout BootNo
Cable Insulation Outside Diameter Range (metric)27.4-45.7 mm
Case Quantity1
Conductor Size by Voltage(15 kV) 400-600 kcmil
Dielectric Strength (V/mil)507 V/mil
Indoor/OutdoorOutdoor Skirted
Insulation RejacketingNo
Lug/Stem Connector Included in KitNo
Number of Conductors1
Product Series5640
RoHS EU CommentsContact 3M for information
Trademark3M
