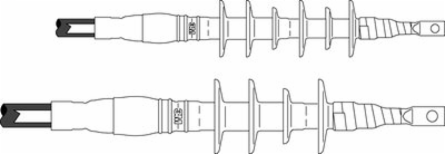

3M 7665-S-HSG-8 Cold Shrink Silicone Rubber Termination, 5-35 kV, 1.05-1.80 Inch O.D.
- MPN: 7665-S-HSG-8
- UPC: 054007424628
- PPN: MMM-7665-S-HSG-8
CAD
$1372.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Silicone Rubber Termination, 5-35 kV, 1.05-1.80 Inch O.D.
Specifications
Key Specifications
| 3M ID | 80610922652 |
|---|---|
| BIL | 200 kV |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 26.7-45.7 mm |
| Compatible Lug | QL2-A-350-750, QL2-A-4/0-600 |
| Conductor Sizes | 1000 kcmil, 1250 kcmil, 1500 kcmil, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Insulation Rejacketing | No |
| Maximum Installed Length | 20.50 in |
| Number of Skirts | 8 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield |
| Voltage | 15 kV, 25/28 kV, 35 kV, 5 kV, 8 kV |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range | 1.05-1.80 in |
| Case Quantity | 1 |
| Conductor Size by Voltage | (5 kV) 700-1500 kcmil, (8 kV) 600-1250 kcmil, (15 kV) 500-1000 kcmil, (25/28 kV) 250-800 kcmil, (35 kV) 3/0 AWG-600 kcmil |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Product Series | 7660-S-HSG |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
