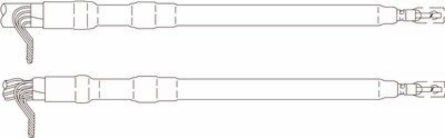

3M 7645-T-HSG-110 3M Cold Shrink QT-III Termination Kit 7645-T-HSG-110, Longitudinally Corrugated and Wire Over Tape, Non-Skirted High Amp, 5-15 kV, 1.05-1.80 in (26,7-45,7 mm) Cable Insul. O.D., 1 termination/kit

3M Cold Shrink QT-III Termination Kit 7645-T-HSG-110, Longitudinally Corrugated and Wire Over Tape, Non-Skirted High Amp, 5-15 kV, 1.05-1.80 in (26,7-45,7 mm) Cable Insul. O.D., 1 termination/kit

MPN: 7645-T-HSG-110
UPC: 054007417699
PPN: MMM-7645-T-HSG-110

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$638.82/ EA

Qty:

Loading add to cart quantity...

Description

3M Cold Shrink QT-III Termination Kit 7645-T-HSG-110, Longitudinally Corrugated and Wire Over Tape, Non-Skirted High Amp, 5-15 kV, 1.05-1.80 in (26,7-45,7 mm) Cable Insul. O.D., 1 termination/kit

Specifications

3M ID: 80610834188

BIL: 110 kV

Breakout Boot: No

Cable Insulation Outside Diameter Range (metric): 26.7-45.7 mm

Compatible Lug: QL2-A-350-750, QL2-A-4/0-600

Conductor Sizes: 1000 kcmil, 1250 kcmil, 1500 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil

Indoor/Outdoor: Indoor Non-skirted

Insulation Rejacketing: No

Maximum Installed Length: 12.00 in

Number of Skirts: 0

RoHS 2011/65/EU Compliant: Undetermined

Shielding Type: Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield

Voltage: 15 kV, 5 kV, 8 kV

Agency ApprovalsIEEE

Brand3M™

Cable Insulation Outside Diameter Range1.05-1.80 in

Case Quantity1

Conductor Size by Voltage(5 kV) 700-1500 kcmil, (8 kV) 600-1250 kcmil, (15 kV) 500-1000 kcmil

FamilyQT-III

Insulation Level100%, 133%

Lug/Stem Connector Included in KitNo

Number of Conductors1

Product Series7640-T-HSG-110

RoHS EU CommentsContact 3M for information

Trademark3M

Voltage ApplicationMedium Voltage
