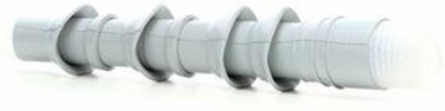

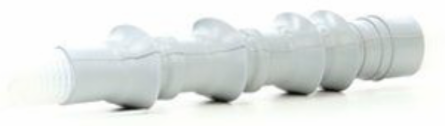

3M 5651 Cold Shrink QT-II Outdoor Termination Kit, 15-25/28 kV, 0.64-1.12 Inch Cable O.D.
- MPN: 5651
- UPC: 054007091325
- PPN: MMM-5651
CAD
$520.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-II Outdoor Termination Kit, 15-25/28 kV, 0.64-1.12 Inch Cable O.D.
Specifications
Key Specifications
| 3M ID | 80610252670 |
|---|---|
| BIL | 150 kV |
| Cable Insulation Outside Diameter Range | 0.64-1.12 in |
| Cable Type | Polymeric insulated, copper wire screened, unarmored cable |
| Conductor Size by Voltage | (15 kV) 2-2/0 AWG, (25/28 kV) 2-1/0 AWG |
| Family | QT-II |
| Insulation Level | 100%, 133% |
| Insulation Rejacketing | No |
| Lug/Stem Connector Included in Kit | No |
| Maximum Wire Gauge | 120mm² |
| Number of Conductors | 1 |
| Product Series | 5650 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Jacketed Concentric Neutral (JCN) |
| Voltage | 15 kV, 25/28 kV |
| Agency Approvals | IEEE |
|---|---|
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 16.2 - 28.5 mm |
| Case Quantity | 1 |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG |
| Indoor/Outdoor | Outdoor |
| Insulation O.D. Range (Metric) | 16.2-28.4 mm |
| Jacket Outside Diameter Range | 0.93-1.35 in |
| Maximum Installed Length | 13.00 in |
| Minimum Wire Gauge | 25mm² |
| Number of Skirts | 6 |
| Product Technology | Cold Shrink |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Rating | 12/20 KV |
