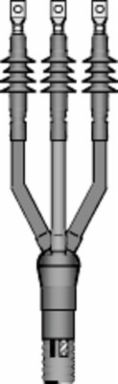

3M 7692-S-4-3G Cold Shrink QT-III 3 Conductor Termination Kit, 0.70-0.92 Inch O.D., 5-35 kV
- MPN: 7692-S-4-3G
- UPC: 054007436836
- PPN: MMM-7692-S-4-3G
CAD
$4157.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III 3 Conductor Termination Kit, 0.70-0.92 Inch O.D., 5-35 kV
Specifications
Key Specifications
- 3M ID
- 80611202831
- Applications
- Cable Connection
- Brand
- 3M™
- Cable Insulation Outside Diameter Range
- 0.70-0.92 in
- Cable Type
- Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
- Conductor Material
- Aluminum, Copper
- Conductor Sizes
- 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG
- Family
- QT-III
- Insulation Level
- 1, 1.33
- Insulation Rejacketing
- Yes
- Maximum Cable Outside Diameter
- 3.30 Inch
- Maximum Installed Length
- 12.25 in
- Minimum Wire Gauge
- 35mm²
- Number of Skirts
- 4
- Product Type
- Splice
- RoHS EU Comments
- Contact 3M for information
- Splice Type
- Inline
- Typical Splice Length
- 28 in
- Voltage
- 15 kV, 25 kV, 35 kV, 5 kV, 8 kV
Agency ApprovalsIEEE
BIL150 kV
Breakout BootYes
Cable Insulation Outside Diameter Range (metric)17.8-23.4 mm
Case Quantity1
Conductor Size by Voltage(5 kV, 100%) 4/0 AWG-350 kcmil, (5 kV, 133%) 3/0 AWG-350 kcmil, (8 kV, 100%) 3/0 AWG-350 kcmil, (8 kV, 133%) 3/0 AWG-350 kcmil, (15 kV, 100%) 1/0-4/0 AWG, (15 kV, 133%) 2-3/0 AWG, (25/28 kV, 100%) 1-1/0 AWG
Connector IncludedNone
Indoor/OutdoorOutdoor Skirted
Insulation Outside Diameter Range0.64 - 1.01 Inch
Lug/Stem Connector Included in KitNo
Maximum Cable Outside Diameter (metric)83.8 mm
Maximum Wire Gauge95mm²
Number of Conductors3
Product Series7600-S-3G
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeTape Shield, UniShield®, Wire Shield
Trademark3M
Typical Splice Length (metric)711 mm
Voltage ApplicationMedium Voltage
