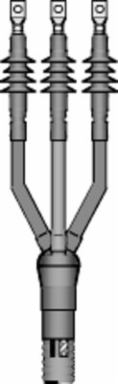

3M 7691-S-4-3G Cold Shrink Termination Kit, 3 Conductor, 5-15 kV, 0.50-0.70 Inch Cable O.D.
- MPN: 7691-S-4-3G
- UPC: 054007436829
- PPN: MMM-7691-S-4-3G
CAD
$3878.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Termination Kit, 3 Conductor, 5-15 kV, 0.50-0.70 Inch Cable O.D.
Specifications
Key Specifications
- 3M ID
- 80611450380
- Applications
- Cable Connection
- Brand
- 3M™
- Cable Insulation Outside Diameter Range
- 0.50-0.70 in
- Cable Type
- MV-105, MV-90
- Conductor Material
- Aluminum, Copper
- Conductor Sizes
- 1 AWG, 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 350 kcmil, 500 kcmil, 750 kcmil
- Family
- QT-III
- Insulation Level
- 1, 1.33
- Insulation Rejacketing
- Yes
- Maximum Cable Outside Diameter
- 2.80 Inch
- Maximum Installed Length
- 12.25 in
- Minimum Wire Gauge
- 120mm²
- Number of Skirts
- 4
- Product Type
- Splice
- RoHS EU Comments
- Contact 3M for information
- Splice Type
- Inline
- Typical Splice Length
- 33 in
- Voltage
- 15 kV, 25 kV, 35 kV, 5 kV, 8 kV
Agency ApprovalsIEEE
BIL150 kV
Breakout BootYes
Cable Insulation Outside Diameter Range (metric)12.7-17.8 mm
Case Quantity1
Conductor Size by Voltage(5 kV, 100%) 1-3/0 AWG, (5 kV, 133%) 3-2/0 AWG, (8 kV, 100%) 2-2/0 AWG, (8 kV, 133%) 2-2/0 AWG, (15 kV, 100%) 2-1 AWG
Connector IncludedNone
Indoor/OutdoorOutdoor Skirted
Insulation Outside Diameter Range1.07 - 1.70 Inch
Lug/Stem Connector Included in KitNo
Maximum Cable Outside Diameter (metric)71.1 mm
Maximum Wire Gauge325mm²
Number of Conductors3
Product Series7600-S-3G
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeTape Shield, UniShield®, Wire Shield
Trademark3M
Typical Splice Length (metric)838 mm
Voltage ApplicationMedium Voltage
