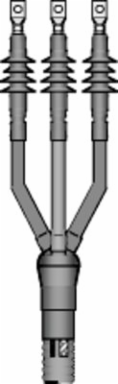

3M 7685-S-8-3G Cold Shrink QT-III 3-Conductor Cable Termination Kit, 1.18-1.52 Inch O.D., 15-35 kV
- MPN: 7685-S-8-3G
- UPC: 054007436874
- PPN: MMM-7685-S-8-3G
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III 3-Conductor Cable Termination Kit, 1.18-1.52 Inch O.D., 15-35 kV
Specifications
Key Specifications
- 3M ID
- 80611202872
- Applications
- Cable Connection
- Brand
- 3M™
- Cable Insulation Outside Diameter Range
- 1.18-1.52 in
- Cable Type
- Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
- Conductor Material
- Aluminum, Copper
- Conductor Sizes
- 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil
- Family
- QT-III
- Insulation Level
- 1, 1.33
- Insulation Rejacketing
- Yes
- Maximum Cable Outside Diameter
- 4.50 Inch
- Maximum Installed Length
- 20.50 in
- Minimum Wire Gauge
- 95mm²
- Number of Skirts
- 8
- Product Type
- Splice
- RoHS EU Comments
- Contact 3M for information
- Splice Type
- Inline
- Typical Splice Length
- 29 in
- Voltage
- 15 kV, 25 kV, 35 kV, 5 kV, 8 kV
Agency ApprovalsIEEE
BIL200 kV
Breakout BootYes
Cable Insulation Outside Diameter Range (metric)30.0-38.6 mm
Case Quantity1
Conductor Size by Voltage(15 kV, 100%) 500-750 kcmil, (15 kV, 133%) 500-750 kcmil, (25/28 kV, 100%) 350-500 kcmil, (25/28 kV, 133%) 250-500 kcmil, (35 kV, 100%) 4/0 AWG-500 kcmil (35 kV, 133%) 1/0 AWG-350 kcmil
Connector IncludedNone
Indoor/OutdoorOutdoor Skirted
Insulation Outside Diameter Range0.84 - 1.38 Inch
Lug/Stem Connector Included in KitNo
Maximum Cable Outside Diameter (metric)114.3 mm
Maximum Wire Gauge185mm²
Number of Conductors3
Product Series7600-S-3G
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeTape Shield, UniShield®, Wire Shield
Trademark3M
Typical Splice Length (metric)736 mm
Voltage ApplicationMedium Voltage
