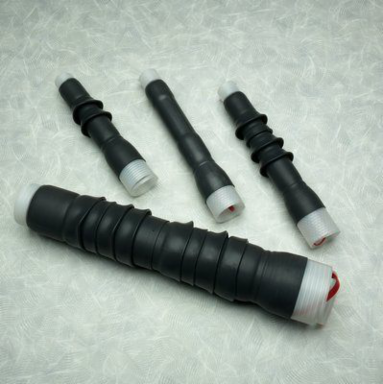

3M 7664-S-8-4/0 Cold Shrink Termination Kit, 5-35 kV, 4/0 AWG, Insulation O.D. 0.83-1.53 Inch
- MPN: 7664-S-8-4/0
- UPC: 054007424512
- PPN: MMM-7664-S-8-4/0
CAD
$1013.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Termination Kit, 5-35 kV, 4/0 AWG, Insulation O.D. 0.83-1.53 Inch
Specifications
Key Specifications
| 3M ID | 80610922546 |
|---|---|
| BIL | 200 kV |
| Cable Insulation Outside Diameter Range (metric) | 21.1-38.9 mm |
| Conductor Sizes | 4/0 AWG |
| Indoor/Outdoor | Outdoor |
| Insulation Rejacketing | No |
| Maximum Installed Length (metric) | 52.07 cm |
| Product Series | 7660-S |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Agency Approvals | IEEE |
|---|---|
| Cable Insulation Outside Diameter Range | 0.83-1.53 in |
| Cable Type | Compact/Solid, Stranded |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Maximum Installed Length | 20.50 in |
| Number of Skirts | 8 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Voltage | 25/28 kV, 35 kV |
