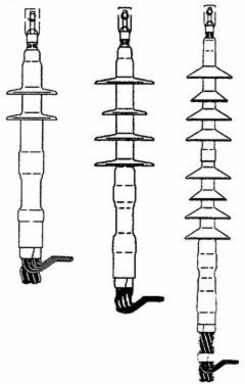

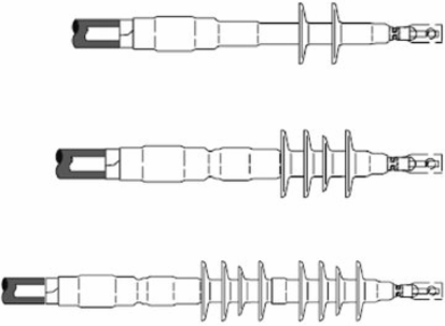

3M 7686-S-8 Cold Shrink QT-III Outdoor Termination Kit, 1.53-2.32 Inch Cable O.D., 5-35 kV, 3 Terminations
- MPN: 7686-S-8
- UPC: 054007424680
- PPN: MMM-7686-S-8
CAD
$4847.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Outdoor Termination Kit, 1.53-2.32 Inch Cable O.D., 5-35 kV, 3 Terminations
Specifications
Key Specifications
| 3M ID | 80610922710 |
|---|---|
| BIL | 200 kV |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 38.9-58.9 mm |
| Compatible Lug | QL2-A-1000-1250, QL2-A-350-750, QL2-A-500-1000 |
| Conductor Sizes | 1000 kcmil, 1250 kcmil, 1500 kcmil, 1750 kcmil, 2000 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Insulation Rejacketing | No |
| Maximum Installed Length | 21.50 in |
| Number of Skirts | 8 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 25/28 kV, 35 kV, 5 kV, 8 kV |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M |
| Cable Insulation Outside Diameter Range | 1.53-2.32 in |
| Case Quantity | 1 |
| Conductor Size by Voltage | (5 kV) 1750-2000 kcmil, (8 kV) 1500-2000 kcmil, (15 kV) 1250-2000 kcmil, (25/28 kV) 900-1750 kcmil, (35 kV) 700-1500 kcmil |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 1 |
| Product Series | 7680-S |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M™ |
| Voltage Application | Medium Voltage |
