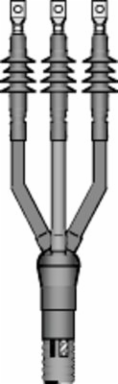

3M 7621-S-2-3G Cold Shrink QT-III 3-Conductor Termination Kit, 0.50-0.70 Inch Insulation O.D., 15 kV
- MPN: 7621-S-2-3G
- UPC: 054007436805
- PPN: MMM-7621-S-2-3G
CAD
$3173.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III 3-Conductor Termination Kit, 0.50-0.70 Inch Insulation O.D., 15 kV
Specifications
Key Specifications
| 3M ID | 80611443724 |
|---|---|
| BIL | 95 kV |
| Breakout Boot | Yes |
| Cable Insulation Outside Diameter Range (metric) | 12.7-17.8 mm |
| Conductor Size by Voltage | (5 kV, 100%) 1-3/0 AWG, (5 kV, 133%) 2-2/0 AWG, (8 kV, 100%) 2-2/0 AWG, (8 kV, 133%) 2-2/0 AWG, (15 kV, 100%) 2-1 AWG |
| Family | QT-III |
| Insulation Level | 1, 1.33 |
| Lug/Stem Connector Included in Kit | No |
| Maximum Cable Outside Diameter (metric) | 71.1 mm |
| Number of Conductors | 3 |
| Product Series | 7600-S-3G |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
| Agency Approvals | IEEE |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range | 0.50-0.70 in |
| Case Quantity | 1 |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG |
| Indoor/Outdoor | Outdoor Skirted |
| Insulation Rejacketing | Yes |
| Maximum Cable Outside Diameter | 2.80 Inch |
| Maximum Installed Length | 10.50 in |
| Number of Skirts | 2 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 5 kV, 8 kV |
