3M 7691-S-4-3-RJS Cold Shrink QT-III Three Conductor Cable Termination Kit, 3 Phase, 0.50-0.70 Inch O.D., 15 kV
- MPN: 7691-S-4-3-RJS
- UPC: 054007047254
- PPN: MMM-7691-S-4-3-RJS
CAD
$2516.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

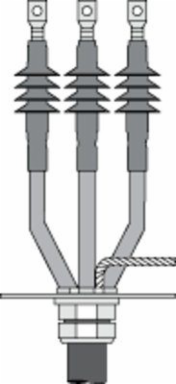

Cold Shrink QT-III Three Conductor Cable Termination Kit, 3 Phase, 0.50-0.70 Inch O.D., 15 kV
Specifications
Key Specifications
| 3M ID | 80611450398 |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range (metric) | 12.7-17.8 mm |
| Conductor Size by Voltage | (5 kV) 1-3/0 AWG, (8 kV) 2-2/0 AWG, (15 kV) 2-1 AWG |
| Family | QT-III |
| Insulation Rejacketing | Yes |
| Maximum Installed Length | 12.25 in |
| Number of Skirts | 4 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 5 kV, 8 kV |
| BIL | 150 kV |
|---|---|
| Cable Insulation Outside Diameter Range | 0.50-0.70 in |
| Case Quantity | 1 |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG |
| Indoor/Outdoor | Outdoor |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 3 |
| Product Series | 7600 RJS |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
