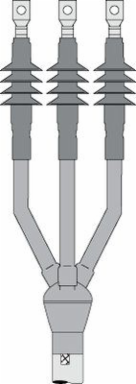

3M 7693-S-4-3W Cold Shrink QT-III Termination Kit, 3 Conductors, 0.92-1.18 Inch O.D., 25/28 kV
- MPN: 7693-S-4-3W
- UPC: 054007047537
- PPN: MMM-7693-S-4-3W
CAD
$3980.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Termination Kit, 3 Conductors, 0.92-1.18 Inch O.D., 25/28 kV
Specifications
Key Specifications
| 3M ID | 80610988646 |
|---|---|
| BIL | 150 kV |
| Breakout Boot | Yes |
| Cable Insulation Outside Diameter Range (metric) | 23.4-30.0 mm |
| Conductor Size by Voltage | (5 kV) 500-750 kcmil, (8 kV) 400-600 kcmil, (15 kV) 250-450 kcmil, (25/28 kV) 2/0 AWG-250 kcmil |
| Family | QT-III |
| Insulation Rejacketing | Yes |
| Maximum Installed Length | 12.25 in |
| Number of Skirts | 4 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 25/28 kV, 5 kV, 8 kV |
| Agency Approvals | AEIC, IEC, JIS |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range | 0.92-1.18 in |
| Case Quantity | 1 |
| Conductor Sizes | 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 3 |
| Product Series | 7600-S-3W |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
