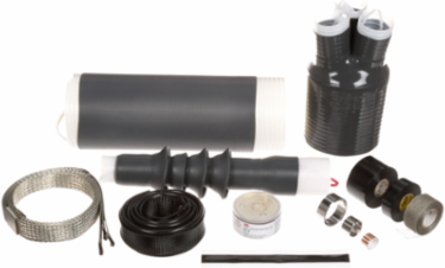

3M 7100006351 3M™ Cold Shrink QT-III 3/C Termination Kit 7693-S-4-3G, Tape/Wire/UniShield®, 5-25 kV, Insulation OD 0.92-1.18 in, 3/kit
- MPN: 7100006351
- UPC: 054007436843
- PPN: MMM-7693-S-4-3G
CAD
$4379.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
Features
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cable Shielding | Tape Shield |
| Insulation Outer Diameter (Imperial) | 0.92 |
| Insulation Outer Diameter (Metric) | 23.368 |
| Insulation Rejacketing | Yes |
| Voltage | 15 kV |
| BIL | 150 kV |
| Lug/Stem Connector Included in Kit | No |
| Maximum Cable Outside Diameter (Metric) | 99.1 mm |
| Product Series | 7600-S-3G |
| Type | Cold Shrink QT-III |
| Breakout Boot | Yes |
|---|---|
| Conductor Sizes (Imperial) | 1 AWG |
| Insulation Outer Diameter (Imperial) UOM | in |
| Insulation Outer Diameter (Metric) UOM | mm |
| Number of Conductors | 3.0 |
| Application | Cable Connection; Cable Termination |
| Indoor/Outdoor | Outdoor Skirted |
| Maximum Cable Outside Diameter | 3.90 Inch |
| Maximum Installed Length | 12.25 in |
| RoHS EU Comments | Contact 3M for information |
| Voltage Application | Medium Voltage |
