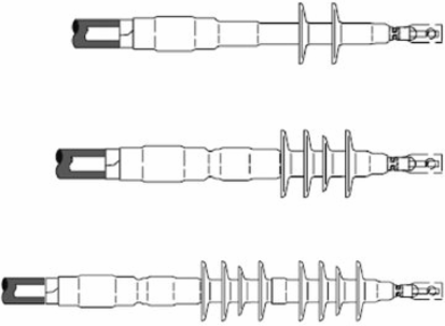

3M 7696-S-4 3M Cold Shrink QT-III Outdoor 4 Skirt Termination 7696-S-4, Tape, Wire and UniShield, 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit
- MPN: 7696-S-4
- UPC: 054007422150
- PPN: MMM-7696-S-4
CAD
$3354.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3M Cold Shrink QT-III Outdoor 4 Skirt Termination 7696-S-4, Tape, Wire and UniShield, 5-25/28 kV, 1.53-2.32 in (21,1-38,9 mm) Cable Insul. O.D., 1 termination/kit
Specifications
Key Specifications
- 3M ID
- 80610920151
- BIL
- 150 kV
- Breakout Boot
- No
- Cable Insulation Outside Diameter Range (metric)
- 38.9-58.9 mm
- Compatible Lug
- QL2-A-1000-1250
- Conductor Sizes
- 1000 kcmil, 1250 kcmil, 1500 kcmil, 1750 kcmil, 2000 kcmil, 900 kcmil
- Indoor/Outdoor
- Outdoor Skirted
- Insulation Rejacketing
- No
- Maximum Installed Length
- 13.25 in
- Number of Skirts
- 4
- RoHS 2011/65/EU Compliant
- Undetermined
- Shielding Type
- Tape Shield, UniShield®, Wire Shield
- Voltage
- 15 kV, 25/28 kV, 5 kV, 8 kV
Agency ApprovalsIEEE
Brand3M
Cable Insulation Outside Diameter Range1.53-2.32 in
Case Quantity1
Conductor Size by Voltage(5 kV) 1750-2000 kcmil, (8 kV) 1500-2000 kcmil, (15 kV) 1250-2000 kcmil, (25/28 kV) 900-1750 kcmil
FamilyQT-III
Insulation Level100%, 133%
Lug/Stem Connector Included in KitNo
Number of Conductors1
Product Series7690-S
RoHS EU CommentsContact 3M for information
Trademark3M™
Voltage ApplicationMedium Voltage
