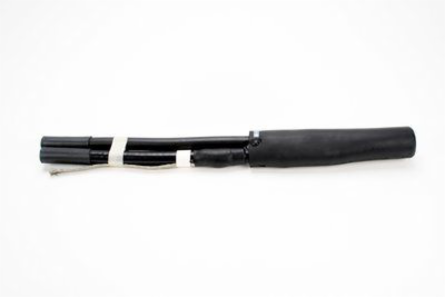

3M 5382 Motor Lead Pigtail Splice Kit, 5-8 kV, 2-1/0 AWG (Feeder), 4-1/0 AWG (Motor Lead)
- MPN: 5382
- UPC: 051128559529
- PPN: MMM-5382
CAD
$1599.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Motor Lead Pigtail Splice Kit, 5-8 kV, 2-1/0 AWG (Feeder), 4-1/0 AWG (Motor Lead)
Specifications
Key Specifications
| 3M ID | 80611425408 |
|---|---|
| Brand | 3M |
| Conductor Material | Aluminum, Copper |
| Connection Type | Pigtail (Non-Shielded), Pigtail (Shielded) |
| Insulation Outside Diameter | 0.43-0.65 Inch |
| Maximum Wire Gauge | 240mm² |
| Number of Conductors | 1, 3 |
| Range Feeder Cable (AWG & kcmil) | 2-0 |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN), Non-shielded, Ribbon Shield, UniShield®, Wire Shield |
| Trademark | 3M |
| Typical Splice Length (metric) | 838 mm |
| Voltage Application | Medium Voltage |
| Applications | Cable Connection |
|---|---|
| Cable Type | Concentric Neutral (CN), Jacketed Concentric Neutral (JCN) |
| Conductor Sizes | 250 kcmil, 350 kcmil, 500 kcmil |
| Connector Included | No, None |
| Insulation Outside Diameter Range | 0.43-0.65 in |
| Minimum Wire Gauge | 120mm² |
| Product Type | Splice |
| Range Motor Lead (AWG & kcmil) | 4-1/0 |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Splice Type | Inline |
| Typical Splice Length | 33 in |
| Voltage | 5 - 8 kV |
