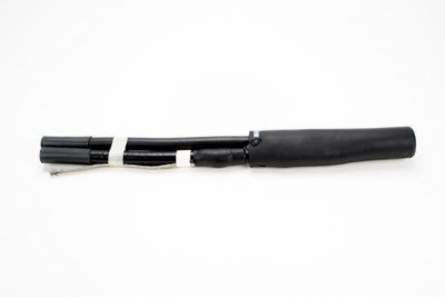

3M 5383 3M Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Shielded and Non-Shielded, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1 per case

3M Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Shielded and Non-Shielded, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1 per case

3M 5383 3M Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Shielded and Non-Shielded, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1 per case

MPN: 5383
UPC: 051128559536
PPN: MMM-5383

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1948.59/ EA

Loading add to cart quantity...

Description

3M Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Shielded and Non-Shielded, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1 per case

Specifications

Specifications

3M ID: 80611425416

Brand: 3M

Conductor Material: Aluminum, Copper

Connection Type: Pigtail (Non-Shielded), Pigtail (Shielded)

Insulation Outside Diameter: 0.53-0.88 Inch

Maximum Wire Gauge: 500mm²

Number of Conductors: 1, 3

Range Feeder Cable (AWG & kcmil): 1/0-250

RoHS 2011/65/EU Compliant: Yes

Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN), Non-shielded, Ribbon Shield, UniShield®, Wire Shield

Trademark: 3M

Typical Splice Length (metric): 889 mm

Voltage Application: Medium Voltage

ApplicationsCable Connection

Cable TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)

Conductor Sizes1000 kcmil, 500 kcmil, 750 kcmil

Connector IncludedNo, None

Insulation Outside Diameter Range0.53-0.88 in

Minimum Wire Gauge240mm²

Product TypeSplice

Range Motor Lead (AWG & kcmil)2-250

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption

Splice TypeInline

Typical Splice Length35 in

Voltage5 - 8 kV
