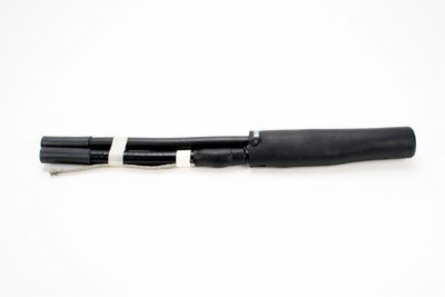

3M 5384 3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Shielded and Non-Shielded, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1 per case

3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Shielded and Non-Shielded, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1 per case

3M 5384 3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Shielded and Non-Shielded, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1 per case

MPN: 5384
UPC: 051128559543
PPN: MMM-5384

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2089.31/ EA

Loading add to cart quantity...

Description

3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Shielded and Non-Shielded, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1 per case

Specifications

Specifications

3M ID: 80611425424

Brand: 3M

Conductor Material: Aluminum, Copper

Connection Type: Pigtail (Non-Shielded), Pigtail (Shielded)

Insulation Outside Diameter: 0.75-1.12 Inch

Maximum Wire Gauge: 185mm²

Number of Conductors: 1, 3

Range Feeder Cable (AWG & kcmil): 250-500

RoHS 2011/65/EU Compliant: Yes

Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN), Non-shielded, Ribbon Shield, UniShield®, Wire Shield

Trademark: 3M

Typical Splice Length (metric): 838 mm

Voltage Application: Medium Voltage

ApplicationsCable Connection

Cable TypeCable with XLPE insulation

Conductor Sizes1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 350 kcmil, 4/0 AWG

Connector IncludedNo, None

Insulation Outside Diameter Range0.75-1.12 in

Minimum Wire Gauge60mm²

Product TypeCold shrinking

Range Motor Lead (AWG & kcmil)4/0-500

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption

Splice TypeInline

Typical Splice Length33 in

Voltage5 - 8 kV
