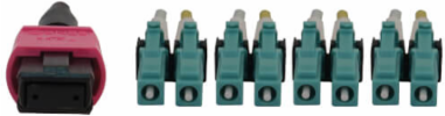

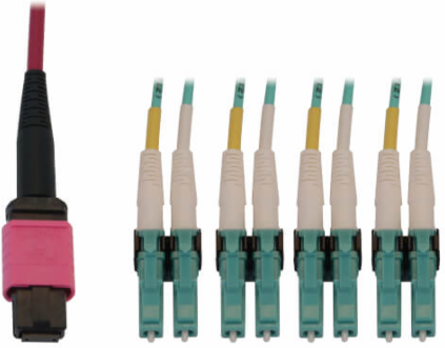

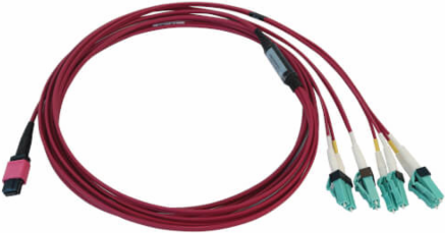

Tripp Lite N845X03M8LMG Fiber Optic Cable, 40/100G Multimode OM4, 12F MTP/MPO-PC to 4x Duplex LC/PC F/M, LSZH, Magenta, 3 m
- MPN: N845X03M8LMG
- UPC: 037332272331
- PPN: TRP-N845X-03M-8L-MG
CAD
$315.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100G Multimode 50/125 OM4 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Magenta, 3 m (9.8 ft.)
Documentation & Downloads
Specifications
Material
| Technology | Fiber; Multimode |
|---|---|
| Cable Jacket Color | Magenta |
| Cable Jacket Material | LSZH |
| Push/Pull Tabs | Yes |
| Endface Polish | PC |
|---|---|
| Connector Color | Aqua; Magenta; Black |
| Cable Jacket Rating | OFNR |
Dimensions
| Cable Length | 3 m (9.8 ft) |
|---|---|
| Side A - Connector 1 | 12F MPO (Female) |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
| Number of Fibers | 8 |
|---|---|
| Side B - Connector 1 | (4) LC Duplex (Male) |
| Core Diameter | 50.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
Performance
| Network Compatibility | 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 850NM | 3.5 dB/km |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
|---|---|
| Relative Humidity | 5% to 85% RH, Non-Condensing |
| Attenuation @ 1300NM | 1.5 dB/km |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
