3M 30041 Scotchlok Copper One Hole Lug, 3/0 AWG, 1/2 Inch Stud Size, 2.63 Inch Length
- MPN: 30041
- UPC: 054007125686
- PPN: MMM-30041
CAD
$26.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

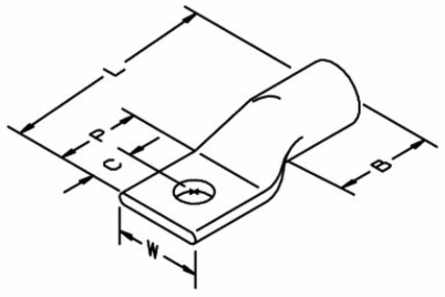

This lug has a 1/2 in Stud Size, a 0.490 in (12,4 mm) I.D., and a 2.630 in (66,8 mm) length.
Specifications
Key Specifications
- Pad Length
- 1.11 Inch
- Color
- Orange
- Inside Diameter
- 0.49 Inch
- Stud Sizes
- 1/2 Inch
- Number of Holes
- 1
- Barrel Length (metric)
- 23.8 mm
- Outside Diameter (metric)
- 15.8 mm
- Agency Approvals
- UL Listed
- Trademark
- Scotchlok
- Inside Diameter (metric)
- 12.4 mm
- Conductor Sizes
- 3/0 AWG
- Barrel Length
- 0.94 Inch
- Pad Width
- 0.91 Inch
Connector MaterialCopper
RoHS 2011/65/EU CompliantYes
Lug Base MetalCopper
Center of Hole to End of Pad (metric)13.4 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Length (Metric)66.8 mm
Pad Width (metric)23.1 mm
Pad Length (metric)28.2 mm
Center of Hole to End of Pad0.53 Inch
Length2.63 Inch
Barrel StyleStandard Barrel
Outside Diameter0.62 Inch
For Use WithCopper Conductor Only
