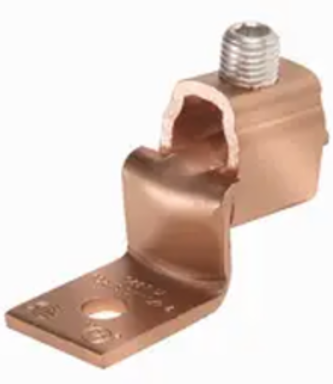

Burndy KLU125 Copper Terminal, Offset Tongue, 1 Hole, 2-1/0 AWG, 1/4 Inch Stud, 1 Screw
- MPN: KLU125
- UPC: 781810351390
- PPN: BUR-27002987
- UNSPSC: 39121408
CAD
$5.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Offset Tongue Copper Terminal, 1-hole, 1/4" Stud, #2-1/0 AWG Cu, Unplated
Features
- Range-taking design reduces SKUs required in inventory
- High conductivity copper alloy for long lasting reliable contact
- Compact design, easy to install
- Slot Robertson screw, hex head, hex socket bolt require no special installation tools
Specifications
Key Specifications
- Standard
- UL467
- Description - Invoice
- 2-1/0 CU LUG B
- Country of Origin
- India
- Conductor - Copper Str Size Range
- 2 AWG-1/0
- Dimension - B Length fraction
- 5/8 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 1.98 in
- Dimension - Pad Width inch
- 0.62
- Dimension - Strip Length inch
- 15/16
- Width
- 1.250 in
- Industry Standard(s)
- UL467
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Screw Type
- Slot
- Plating Type
- Unplated
- Standards - Industry Standards Met
- UL467
- Trade Name
- SCRULUG™
- Application
- For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
- Conductor Type
- CU C Str-Size
- Type
- Bolted Lugs & Terminals
- Class Code
- B51
- Harmonization Code
- 8535909999
- Lead Time
- 11 wk
- Order Multiple
- 1 EA
- Sub Class Code
- B51BG7F
- Material
- Copper
- BOX SIZE
- 3.750x14.500x11.500 (in)
- Carton - Number of Sub Packs
- 250
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810351390
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810351391
- Each - Pack Description
- Each
- Package - Gross Weight per Pack
- 2.5 lb.
- Package - Number of Sub Packs
- 25
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810351390
- Package Height
- 3.250 in
- Package Quantity
- 25 EA
- Package Width
- 3.500 in
- Pallet Height
- 30.750 in
- Pallet Weight
- 1740.960 lb.
- Standard Package Quantity
- 25
ARRA CompliantNo
Stock IndicatorS - Shelf Stock
Conductor - Copper Str Size2 AWG;1 AWG;1/0
Description - SlangOffset tongue mechanical lug
Dimension - B Length inch0.61 in
Dimension - Hole Size inch0.26 in
Dimension - L Length Overall mm50 mm
Dimension - N inch0.42 in
Dimension - Screw Size inch3/8
Dimension - Stud Size inch1/4
Hardware Type3/8 UNF Slotted SetScrew
Installation Torque Recommended in-lb50
Physical Attribute - Number of Screws1
PlatedN
Product TypeTERMINAL
Standards - RoHS Compliance StatusCM
Sub BrandSCRULUG
Conductor Size2-1/0 AWG
Connector TypePressure Bar
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
MSDS FlagNo
Replaced Catalog Number27002987
UL ListedNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack26.920 lb.
Carton - Pack DescriptionCarton
Carton - Total Units250
Each - Number of Sub Packs1
Lowest Level UOMEach
Package - GTIN - Package30781810351391
Package - Pack DescriptionPackage
Package - Total Units25 EA
Package Length4.500 in
Package Weight2.580 lb.
Pallet - GTIN - Package70781810351399
Pallet Length48.000 in
Pallet Width40.000 in
NAICS Code332999H303
Certifications
- Buy American Compliant
- No
- cULus
- Yes
- UL Listed Direct Burial
- No
CSA ApprovedNo
ETLNo
UL RecognizedNo
