3M 7000140669 3M™ Scotchlok™ Copper Two Hole Long Barrel Lug 31125, up to 35 kV, 2 AWG, Brown, 25/Case
- MPN: 7000140669
- UPC: 051138524975
- PPN: MMM-31125
CAD
$36.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M™ Scotchlok™ 31100 2 Hole Compression Lug is for use with copper conductors only. The seamless copper construction offers high conductivity and a tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
Features
- Long barrel ensures a secure fit and offers reliable performance
- Barrel has colored stripes that help to indicate the wire range
- Suitable for indoor and outdoor applications
- Made of copper for good conductivity and tin plating for corrosion resistance
- For up to 35 kV applications
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Documentation & Downloads
Specifications

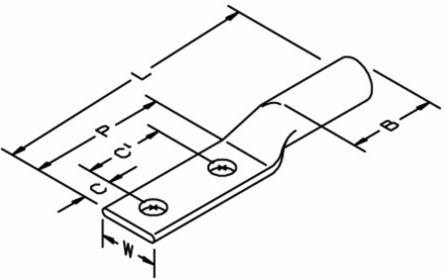

Key Specifications
| Country of Origin | Chile |
|---|---|
| Barrel Length (Metric) | 31.8 mm |
| Maximum Conductor Size (Imperial) | 2 AWG |
| Pad Length (Imperial) UOM | in |
| Barrel Style | Long Barrel |
| Center of Hole to Center of Hole (Metric) | 44.5 mm |
| Center of Hole to End of Pad (Metric) | 16.0 mm |
| Compatible Conductor Size (Metric) | 35 mm² |
| For Use With | Copper Conductor Only |
| Inside Diameter (Metric) | 7.8 mm |
| Maximum Operating Voltage | 35 Kilovolt |
| Overall Length (Imperial) | 4.85 |
| Overall Length (Metric) | 123.2 |
| Pad Width | 0.63 |
| Product Color | Brown |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Units per Case | 25.0 |
| Barrel Length (Imperial) | 1.25 in |
|---|---|
| Material | Copper |
| Number of Stud Holes | 2.0 |
| Pad Length (Metric) | 76.2 mm |
| Center of Hole to Center of Hole | 1.75 Inch |
| Center of Hole to End of Pad | 0.63 Inch |
| Compatible Conductor Size (Imperial) | 2 AWG |
| Connector Description | Two hole |
| Inside Diameter (Imperial) | 0.31 |
| Lug Type | Compression Lugs |
| Outer Diameter (Imperial) UOM | in |
| Overall Length (Imperial) UOM | in |
| Overall Length (Metric) UOM | mm |
| Pad Width (Metric) | 16 mm |
| Product Series | 31000 |
| Stud Sizes | 1/2 Inch |
