3M 7000140667 3M™ Scotchlok™ Copper Two Hole Long Barrel Lug 31141, up to 35 kV, 3/0 AWG, Orange, 10/Case
- MPN: 7000140667
- UPC: 051138692469
- PPN: MMM-31141
CAD
$48.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M™ Scotchlok™ 31100 2 Hole Compression Lug is for use with copper conductors only. The seamless copper construction offers high conductivity and a tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
Features
- Long barrel ensures a secure fit and offers reliable performance
- Barrel has colored stripes that help to indicate the wire range
- Suitable for indoor and outdoor applications
- Made of copper for good conductivity and tin plating for corrosion resistance
- For up to 35 kV applications
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Documentation & Downloads
Specifications

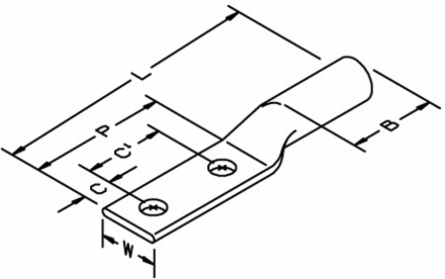

Key Specifications
| Country of Origin | Chile |
|---|---|
| Barrel Length (Metric) | 36.5 mm |
| Maximum Conductor Size (Imperial) | 3/0 AWG |
| Pad Length (Imperial) UOM | in |
| Barrel Style | Long Barrel |
| Center of Hole to Center of Hole (Metric) | 44.5 mm |
| Center of Hole to End of Pad (Metric) | 16.0 mm |
| Compatible Conductor Size (Metric) | 95 mm² |
| For Use With | Copper Conductor Only |
| Inside Diameter (Metric) | 12.4 mm |
| Maximum Operating Voltage | 35 Kilovolt |
| Overall Length (Imperial) | 5.13 |
| Overall Length (Metric) | 130.3 |
| Pad Width | 0.91 |
| Product Color | Orange |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Units per Case | 10.0 |
| Barrel Length (Imperial) | 1.44 in |
|---|---|
| Material | Copper |
| Number of Stud Holes | 2.0 |
| Pad Length (Metric) | 76.2 mm |
| Center of Hole to Center of Hole | 1.75 Inch |
| Center of Hole to End of Pad | 0.63 Inch |
| Compatible Conductor Size (Imperial) | 3/0 AWG |
| Connector Description | Two hole |
| Inside Diameter (Imperial) | 0.49 |
| Lug Type | Compression Lugs |
| Outer Diameter (Imperial) UOM | in |
| Overall Length (Imperial) UOM | in |
| Overall Length (Metric) UOM | mm |
| Pad Width (Metric) | 23 mm |
| Product Series | 31000 |
| Stud Sizes | 1/2 Inch |
