3M 40132 Scotchlok Aluminum Two Hole Lug, 1/0 AWG, 3/8 Inch Stud, 5.28 Inch Length, UL Listed
- MPN: 40132
- UPC: 054007136088
- PPN: MMM-40132
CAD
$34.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

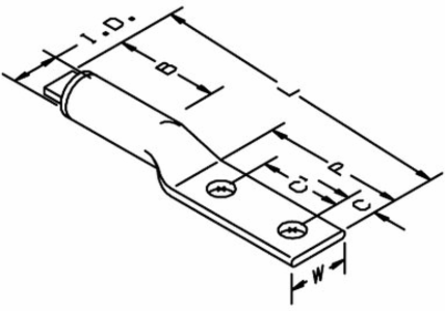

This lug has a 3/8 in Stud Size, a 0.414 in (10,5 mm) I.D., and a 5.28 in (134,1 mm) length
Specifications
Key Specifications
| Center of Hole to End of Pad | 0.62 Inch |
|---|---|
| Agency Approvals | UL Listed |
| Barrel Length | 1.5 Inch |
| Barrel Length (metric) | 38.1 mm |
| Stud Sizes | 3/8 Inch |
| Trademark | Scotchlok |
| For Use With | Aluminum or Copper Conductors |
| Center of Hole to Center of Hole | 1.75 Inch |
| Center of Hole to End of Pad (metric) | 15.7 mm |
| RoHS 2011/65/EU Compliant | Yes |
| Pad Length | 3.25 Inch |
| Number of Holes | 2 |
| Inside Diameter (metric) | 10.5 mm |
| Barrel Style | Standard Barrel |
|---|---|
| Length | 5.28 Inch |
| Pad Width | 0.88 Inch |
| Pad Width (metric) | 22.4 mm |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Pad Length (metric) | 82.6 mm |
| Length (Metric) | 134.1 mm |
| Center of Hole to Center of Hole (metric) | 44.5 mm |
| Color | Tan |
| Lug Base Metal | Aluminum |
| Inside Diameter | 0.414 Inch |
| Conductor Sizes | 1/0 AWG |
