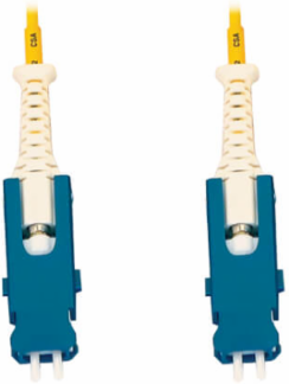

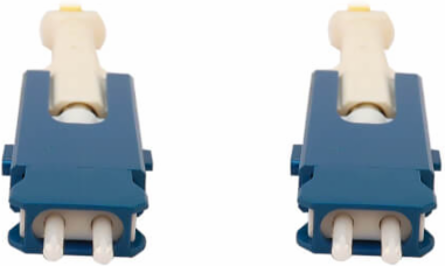

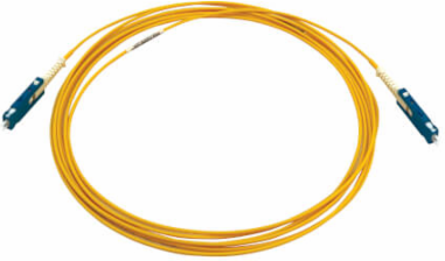

Tripp Lite N383S03M 400G Singlemode 9/125 OS2 Fiber Optic Cable, Duplex SN-UPC M/M, LSZH, Yellow, 3 m
- MPN: N383S03M
- UPC: 037332274441
- PPN: TRP-N383S-03M
CAD
$325.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Singlemode 9/125 OS2 Fiber Optic Cable (Duplex SN-UPC M/M), LSZH, Yellow, 3 m (9.8 ft.)
Documentation & Downloads
Specifications
Performance
| Network Compatibility | 400 Gbps |
|---|---|
| Attenuation @ 1310NM | 0.40 dB/km |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1310nm; 1550nm |
|---|---|
| Attenuation @ 1550NM | 0.30 dB/km |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
Material
| Technology | Fiber; Singlemode |
|---|---|
| Switchable Polarity | Yes |
| Connector Color | Blue, White |
| Cable Jacket Rating | OFNR |
| Endface Polish | UPC |
|---|---|
| Cable Jacket Color | Yellow |
| Cable Jacket Material | LSZH |
Dimensions
| Cable Length | 3 m (9.8 ft) |
|---|---|
| Cable Outer Diameter | 1.60 mm |
| Core Diameter | 9.0 |
| Number of Fibers | 2 |
| Side B - Connector 1 | SN DUPLEX (MALE) |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
|---|---|
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
| Side A - Connector 1 | SN DUPLEX (MALE) |
| Optical Port | SN |
